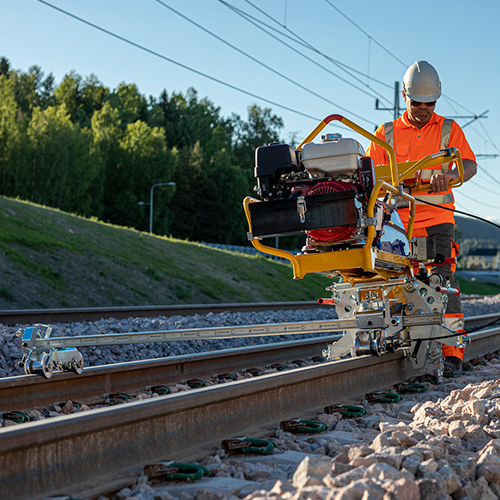

Clip Driver CD200IQ

CD200 IQ is developed with a focus on end-users and high productivity. It features an ergonomic and intuitive user interface for safe and efficient work.

CD200IQ clips and unclips up to 20 sleepers per minute, 2 clips per cycle, and is efficiently operated by a single operator. The modular construction allows easy handling during setup and dismantling, as well as when switching between tools for Fastclip and E-clip. The intelligent control system assists the operator in performing the work safely and efficiently, with the ability to switch between functions. The system also provides information on working hours and the number of cycles completed for clipping/unclipping. The built-in sleeper lifting function enables the lifting of low-lying sleepers up to 50 mm.

Benefits

  • Intelligent control system

    The intelligent control system simplifies operation and prevents incorrect usage.

  • Informative display

    Information about the number of installed clips and operating hours allows for monitoring during work.

  • Ergonomic construction

    Modularly built to simplify handling during setup and dismantling on the track.

  • Easy customization

    Mechanical quick couplers and hydraulic quick connectors for efficient tool interchange.

Technical Data

Measures

Length: 2202 mm

Height: fastclip 1142  / e-CLIP 1103 mm

Width: 2111 mm

Weight Powerpack: 103 kg

Weight Trolley: 54 kg

Weight Tool, Fastclip: 97 kg

Weight Tool, e-clip: 115 kg

Features

Gauge: 1067-1600 mm

Number of simoultanious clips clipped/declipped per cycle: 2 clips

Capacity: Fastclip (up to) 20  sleepers/min / e-CLIP (up to) 10 sleepers/min

Engine

Manufacturer: Honda

Model: GX 270

Type: Air-cooled, 4-stroke OHV

Power: 8,5 HP (6,3 kW) @ 3600 rpm

Fuel: Unleaded 86 octane or higher

Fuel tank capacity: 5,3 litre

Electrical system

Voltage: 12 VDC

Ground: Negative

Hydraulics

Pump type:  Gearpump

Max. flow, pump: 17 l/min

Max. pressure, pump: 120 bar / Boost 215 bar

Volume, hydraulic tank: 8-9 litre

Noice levels

Noice level, idling: 69 dB (A)

Noice level, full throttle: 91 dB (A)

Vibration data

Clipping: 4,31 m/s²

Declipping: 4,65 m/s²

Electrical protection index

Electrical protection index: IP64

Additional Information

CD200IQ is delivered with CE marking according to the standard:

  • Machinery directive: 2006/42/EC

  • Electromagnetic compatibility (EMC): 2014/30/EU

  • Safety of machinery - General principles for design Risk assessment and risk reduction: EN ISO 12100:2010

  • Safety of machinery – Electrical equipment - EN 60204-1

  • Safety of machinery – Control systems: EN ISO 13849-1:2015

Produktgodkännanden:

  • Network Rail: PA05/07221

  • SNCF: AGT 22 283
