Rail Trailer RT 3230
Contact us
Description

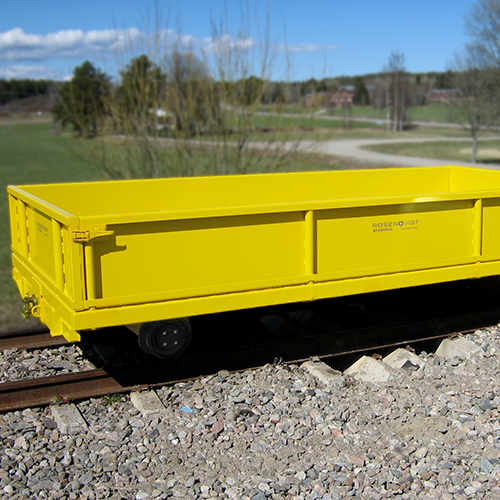

Rail trailer RT3230, for transporting tools and materials during work and transportation on railways. The RT3230 is connected to the towing vehicle with the included drawbar. Pressure for brake release and electrical connection for lighting are taken from the towing vehicle. The machine operator selects the travel direction indication using a power switch on the rail trailer. The sideboards can be removed to facilitate loading and unloading. Included stakes to secure the load in place. RT3230 is a versatile accessory and a convenient aid in the work. The rail trailer can be ordered with or without sideboards.
Benefits
-
Detachable sideboards
The sideboards can be removed to facilitate the loading and unloading of equipment.
-
High load capacity
A load capacity of 17000 kg enables the transportation of heavy materials and equipment without needing direct access to the loading and unloading area.
-
Robust design
A robust and durable design makes the trolley cost-effective over an extended period of use.
Technical data
RT3230 without sideboards
Gauge: 1435 mm
Rail wheels: 350 mm
Length: 5500 mm
Width: 2560 mm
Height (platform): 600 mm
Weight: 2200 kg
Max load: 17000 kg
RT3230 with sideboards
Gauge: 1435 mm
Rail wheels: 350 mm
Length: 5500 mm
Width: 2560 mm
Height (platform): 600 mm
Weight: 2700 kg
Max load: 17000 kg
Additional Information
RT3230 is delivered with CE marking according to the standard:
Machinery directive: 2006/42/EC
Electromagnetic compatibility (EMC): 2014/30/EU
Safety of machinery – General principles for design.
Risk assessment and risk reduction: EN ISO 12100:2010Safety of machinery – Electrical equipment: SS-EN 60204-1
Safety of machinery – Control systems: EN ISO 13849-1:2015
Railway applications - Track - Trailers associated equipment
Part 1: Technical requirements for running and working: SS-EN 15954-1
Part 2: General safety requirements: SS-EN 15954-2
