Sleeper Grabber SG60
Contact us
Description

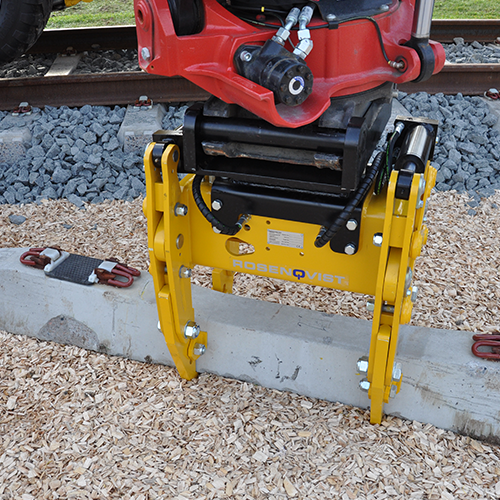

Sleeper grabber SG60 is a high-performance tool for heavy lifting track procedures. The sleeper grabber has been specifically developed to handle sleepers and rail sections efficiently. By avoiding damage to sleepers, it facilitates their reuse. The sleeper grabber's design is based on the sleeper replacer SB60, which has a time-tested track record for reliability.
Benefits
-
Efficient
The sleeper grabber can be used for handling both sleepers and rail, which improves installation efficiency and reuse of sleepers.
-
Interchangeable arms
Interchangeable grab-arms enable the SG60 to handle different types of sleepers.
-
Safety
The sleeper grabber is designed for safe and efficient handling of sleepers by one operator which minimize the risk of work related injuries of railway workers.
Technical data
SG60
Machine bracket: S45/S60
Width: 540 mm
Height: 1128 mm
Weight: 305 kg
Hydraulics: Double acting hydraulics from the carrier machine (two hoses)
Grip force: 1400 kg
Rail type: 50 kg/m, 60 kg/m
Additional Information
SB60 STD is delivered with CE marking according to the standard:
Machinery directive: 2006/42/EC
Safety of machinery - General principles for design Risk assessment and risk reduction: EN ISO 12100:2010
Safety of machinery – Control systems: EN ISO 13849-1:2015
